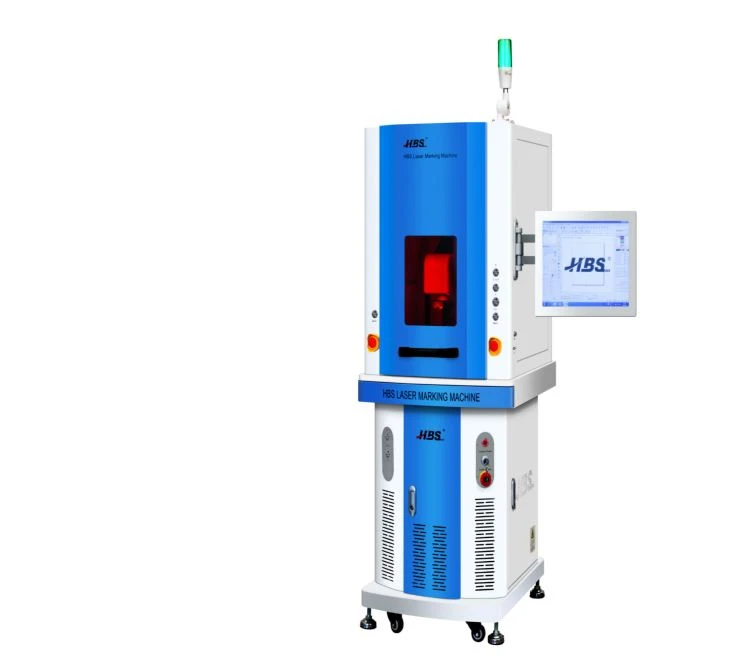

20W/30W/50W/100W Fully Enclosed Safety Cabinet Fiber Laser Marking Machine

20W/30W/50W/100W Fully Enclosed Safety Cabinet Fiber Laser Marking Machine

Extremely fast, with high-speed galvanometer. Small volume, light weight. No consumables, low power consumption, less than 500W. Completely air cooled, do not need water chiller, lower power consumption. Robust under harsh environment and temperature change, can operate with batteries or supply...

Product Details


Extremely fast, with high-speed galvanometer.
Small volume, light weight.
No consumables, low power consumption, less than 500W.
Completely air cooled, do not need water chiller, lower power consumption.
Robust under harsh environment and temperature change, can operate with batteries or supply from automobile cigarette lighter in case of power failure.
Low product depreciation cost.


Marking Sample



marking sample 1.png



Technical  Specification

Laser Power: 20W, 30W, 50W,100WStandard Marking Area:110mm x 110mm
Laser BrandRAYCUS, IPGMarking Depth:≤1.2mm (adjustable)
Laser lifetime100,000(Theoretically)Marking Speed:≤12000mm/s
Laser Wavelength:1064nmMin. Line Width:0.01mm
Laser mediumYb:fiberMin. Character Size:0.5mm
Beam Quality:<1.5Repetition Frequency:≤100KHz
Power Consumption:≤500WRepetition Precision:±0.001mm
Power Supply:220V/50Hz/10AOperation Temperature-10℃-60℃
Cooling method:Air cooledHumidity 5-95%
Control SystemWin7, Win8, Win10, Win XPMarking FormatsMarking Formatsai., plt., dxf., tiff., jpg. etc.

Lens Opitional

ModelHBS65HBS170HBS220HBS300
Marking Area65*65(mm)170*170(mm)220*220(mm)300*300(mm)
Focal Length100mm250mm330mm420mm

Marking sample

marking sample 3.png
