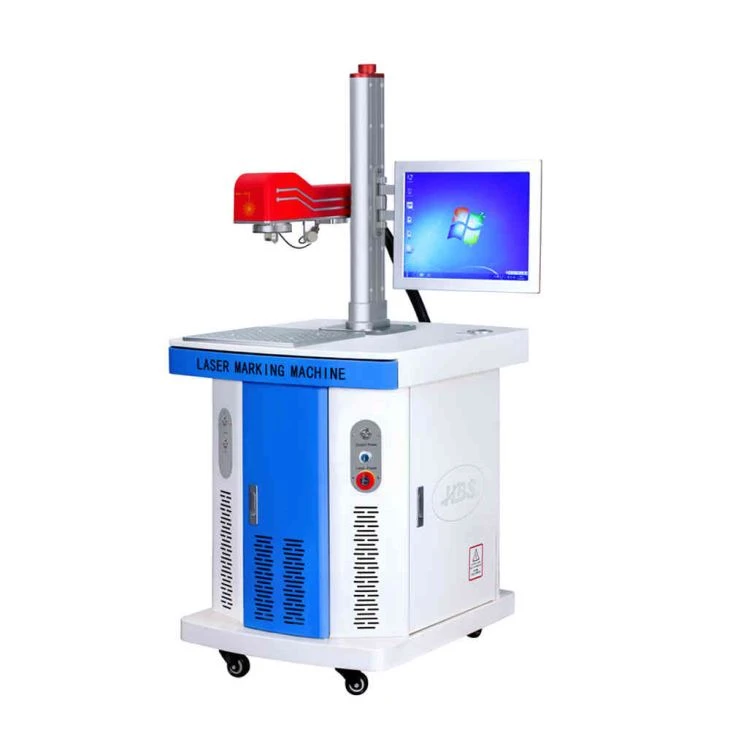

desktop table design fiber laser marking machine used as metal marking and plastics marking, with advanced design and technology

fiber laser marking machine desktop table design fiber laser marking machine used as metal marking and plastics marking, with advanced design and technology

This model is our most hot selling fiber laser marking machine, with compact cabinet design makes the machine most convenient, efficient and most popular among our clients. This machine can be equiped with industry penal touch-screen computer, makes the whole machine very easy to operate, with very good feedback and satisfication from clients.

Product Details

FIBER  LASER  MARKING  MACHINE 20W    HBS-GQ-20A


Technical Parameter


Model

HBS-GQ-20A

Laser Power

20W 30W 50W

Laser   Wavelength

1060nm

Beam Quality

<1.5

Laser   Repetition Frequency

<=100KHz

Marking Area

110mm*110mm

Marking   Depth

<=1.2mm(adjustable   with different materials)

Marking   Speed

<=12000mm/s

Min. Line   Width

0.01mm

Min.   Character Size

0.05mm

Repetition   Precision

+-0.001mm

Power   Consumption

<=500W

Power Supply

220V/50Hz/10A

Cooling   Method

Air cooled


Optional Lens


Focal Length

Marking Area

100mm

65mm*65mm

250mm

175mm*175mm



Packing Details


Dimension   (mm)

855*1000*1170

(machine   head: 530*220*660, table: 840*600*760)

Net Weight   (kg)

72 (machine head: 13.5, table: 58.5)

Gross Weight   (kg)

140




Product Application

●The machine is assembled with fiber laser from Germany or Britain or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.

●Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.


Machine Sketch Design
