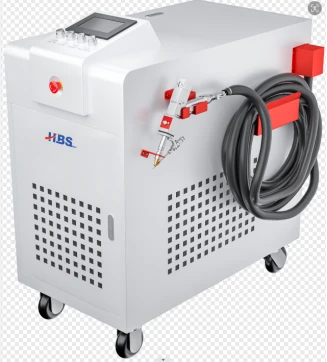

Lightweight Handheld Laser Welder For Metal

Lightweight Handheld Laser Welder for Metal

HBS had presented high technology handheld laser welding with the power of 1000W and 1500W. with the advantages of portable , flexible transportation and high performance welding, they are highly popular among customers.

Technical Parameters

Laser power: 1000W/1500W/2000W

Laser wavelength: 1075±10nm

Working voltage: 220VAC/50Hz/60Hz

Fiber length: standard 10M,maximum support 15M(customized in 25M)

Working mode: continuous/Modulation/Pulse

Weld speed range: 0-120mm/s

Weld seam range: ≤0.5mm

Cooling method: Air cooling

Weld thickness: 0.5-3mm

Working temperature range: 15-35℃

Working humidity range:≤70% no condensation

With advantages as following:

Perfect and high quality welding seam

Stubborn welding seam, strength seam will be better than the substrate. Neat and clean welding seam no need to further grinding

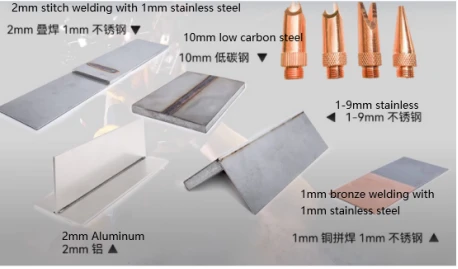

Multi welding modes

Non-contact welding for kinds of complex workpieces. All kinds of welding nozzles will accomplish spot welding,butt welding,lap welding,vertical welding,flat fillet welding,inside and outside fillet welding etc. Laser welding can efficiently solve all kinds of difficults for welding.

safety clip

Equipped with safety clip, just emit the light when clip the metal, improve the safety of operator

fiber length customize

The fiber length can be customized as request so that the welding will be flexible in work

Easy operation without any profession

Handheld laser welder is easily to operate with just about 10 minute training.
