dot pin marking machine tabel design efficient dot pin pneumatic marking machine for metal materials

The table design pneumatic marking machine can realize large size portable marking with perfect marking performance. Machine can be easily operated and save manpower and time. The prices is most competitive during Chinese market.

Product Details

JZ115P                             JZS115P

Plane Pneumatic Marking Machine         Circular Pneumatic Marking Machine

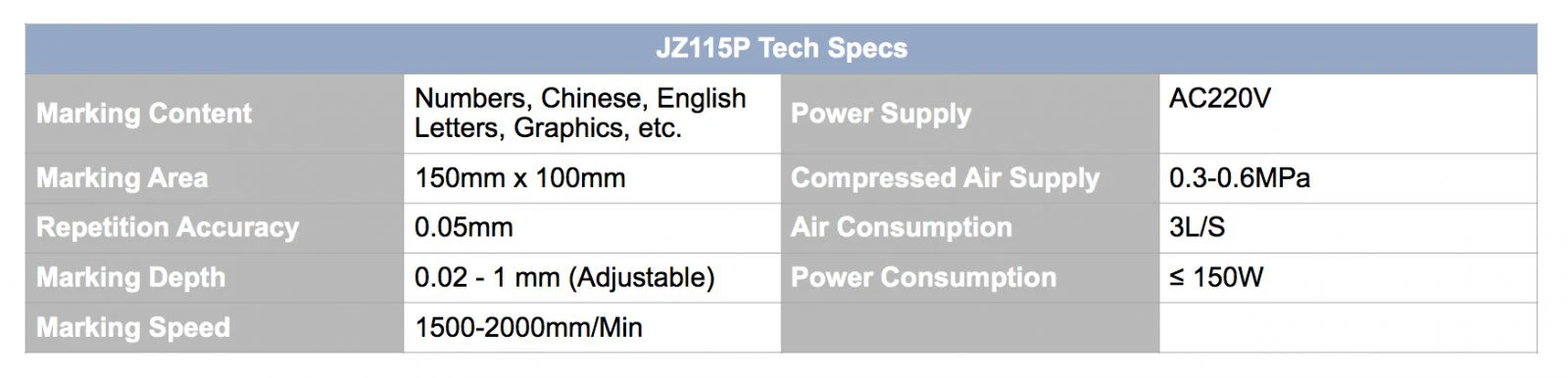

Technical Parameter
Model   Z115P(Flat Surface)/JZS115P(Three axes)
Marking Content: Numbers, Chinese and English characters, graphics etc.
Marking Area: 150mm x 100mm
Repetition Accuracy: 0.05mm
Marking Depth: 0.02 - 1mm (Adjustable with different material)
Marking Speed: 1500 - 2000mm/Min
Power supply: AC220V ±10% 50Hz
Compressed Air supply: 0.3-0.6MPa
Air Consumption: 3L/S
Power consumption:   Less Than 150W

Product Introduction
●The working principle of pneumatic marking machine is first input marking content into the computer, then the marking pin traverses along the specific path directed by the marking machine control unit controlled by the computer. At the same time, the marking pin hit on the workpiece at high frequency driven by compressed air. Thereby forming the required marking contents on the workpiece.

Product Features
●Able to mark on a wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.
●Able to mark Chinese and English characters, Arabic numbers and any pictures etc. with harmonized and aesthetic effects.
●Serial number automatically increasing or decreasing, VIN code, random code, and 2D code, etc.
●Key factor is high impact frequency of marking head and fast marking speed making it possible for mass production to customers' satisfaction.
●Very small force of marking pin has no influence on the mechanical property of workpieces.
●Marking depth (adjustable) 0.02mm to 1 mm, meeting the demands of various marking depth.
●Simple operation, easy maintenance.

Product Application
●Common metals and alloys (iron, copper, aluminum, magnesium, zinc, etc and all other metals), rare metal and alloy (gold, silver and titanium); metallic oxide (various kinds of metal oxide), special surface treatment (phosphating, anodized aluminum, plated surface); ABS material (electrical appliances shell, daily necessities), ink (light buttons, printed products), epoxy resin (encapsulation of electronic components, insulating layer).
