Small Size Fiber Laser Marker/Engraving with Full-Closed Cover

Based on the global market, we win the trust of our customers with high quality Enclosed Mini Fiber Laser Marking Machine, non table marking mahcine for plastics marking, Electric Portable Dot Pin Marking Machine and enthusiastic services, continuously improve customer satisfaction, and be a close partner of our customers. Our company sincerely hopes to establish extensive contact and cooperation with relevant enterprises and take the road of common development. We have enjoyed a great reputation among our customers for quality products and good services. The development of our company coalesces the hard work and wisdom of all the staff of the company, and also coalesces the deep love of the majority of consumers, and moreover inspires the belief of all the staff of the company to strive for courage.

Features of HBS-GQ-20A1 enclosed fiber laser marking machine

1. HBS-GQ-20A1 has the newly enclosed design which fully complies with German safety regulations.

All accessories of this machine have been tested by local German testing agencies and obtained the local German CE certification. Our machines can be exhibited without restrictions at German exhibitions and can be powered on for display. Many other Chinese suppliers at the exhibition do not have this right.

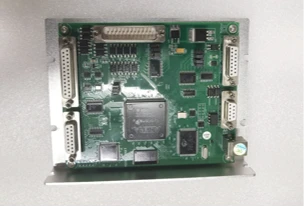

2. The large board card has multiple functions and is highly resistant to interference

Large-capacity multi-function card board, which is larger than the cards on the market, has more complete functions, is resistant to signal interference, and can perform operations correctly without interference. The small cards on the market have low anti-interference function, which causes machine to not work properly.

    Our factory boards:                         Big                                                               Other factory boards: Small

                                                                                              (The cost difference is 3k RMB, about 400USD)

3. Three large power supplies, more stable function

The three large power supplies are used for the 24V laser source, 15V galvanometer, and 5V board, respectively to power each accessory, ensuring the life of the main accessories and making them work more efficiently. The small power supplies on the market are three-in-one functions, and the three accessories share a small power supply, which cannot guarantee the quality.

    Our factory power supplies:                                                                                  Other factory power supplies:

         15V for galvanometer           5V for board     24V for laser source                                      three-in-one

                                                                                            (The cost difference is 1-2k RMB, about 250USD)

4. Using Raycus laser source large size models.

Large size models of Raycus lasers source have more stable functions, uniform light segments, and stable energy output. Although many companies on the market also use original Raycus lasers, they are small size and lower-cost models.

                Our factory Raycus laser:                                                         Other factory Raycus laser:

                                 Big                                                                                              Small

                                                             (The cost difference is 2k RMB, about 300USD)

5. Using good quality solid computer.

The computers we purchase are of good quality, thick, strong and very durable. The computer screen is a touch screen. The computers on the market are thin and prone to malfunction.

                    Our factory computer:                                                               Other factory Raycus laser:

                                 thick                                                                                                thin

                                                                     (The cost difference is 2k RMB, about 300USD)

6. Using thicker and stronger sheet metal.

The sheet metal purchased by the company is 1.5-2mm thick, which is very strong and durable. Some customers have used it for more than ten years without deformation.

        Our factory sheet metal:                                                                         Other factory Raycus laser:

      thick:       1.5mm                             2mm                                                  thin:       0.8mm

                                                                     (The cost difference is 2-3k RMB, about 350USD)

Optional Lens:

Various certificates：

CE for Euro countries to verify:

FDA for USA and other countries to verify:

RoHS Test Report:

1. High-quality customer needs:

For customers with high quality requirements, such as agents and distributors in Europe and America, the biggest fear is that products will develop numerous problems after a period of use, such as frequent software failures or hardware malfunctions. Such problems can damage their company's reputation. With our machines, you don't need to worry. Every component undergoes rigorous testing by local German inspection agencies. From screws to the casing, from software to after-sales service, everything is of high quality.

2. End-user needs:

For end-user industrial users who operate the machines long-term, such as mold factories and automotive parts factories, the biggest fear is insufficient printing accuracy, difficult software operation, and cumbersome machine usage. For these customers, our machines guarantee exceptionally clear printing results. If software lag, operational difficulties, or hardware incompatibility occur during use, our after-sales technical support will promptly resolve any issues.

3. Customized Customer Needs:

For factories or clients engaged in mass production, the biggest concern is printing efficiency. To address this issue, our machines have automatic recognition and autofocus functions, greatly improving production efficiency. Moreover, for special customer needs, we can provide various customized machines to meet non-standard requirements, whether in terms of design or the development of new functions.

The HBS-GQ-20A1 model is specially designed for European standards. European countries require that when laser marking is working, it must be in a closed environment. This product sells very well in Europe. Especially for agents, they can sell 30-50 units a year. A sturdy casing, reasonable circuit layout, qualified accessories and easy-to-operate software are all important conditions to ensure your marking requirements.

Products illustration & Parts introduction for HBS-GQ-20A (Completed Enclosed design)

The below picture is showing the exterior of the machine, this design is specially exporting for European market that fully comply with EU laser safety regulations.

① Complete Safety Cover: the machine is with complete cover design, fully comply with Germany laser safety regulations. The cover have safe system inside: when the door is not completed closed, or open when marking, the laser will shut off;

② Warning Light: the warning light have three functions: when the machine is ready for marking or marking procedure is completed, the light will becomes green; when the machine is in operation or marking, the light will becomes orange or yellow; when the machine is not closed properly(someone open the door when the machine is working), or the machine is not safe, the light will becomes red and it will also alarm.

③ The front door is very safe which is fixed with anti-laser glasses for protecting the operator from hurting by laser emitting;

④ The cover and the machine is flexible, the cover is removable, so if the customer want to mark big parts, they can remove the cover.

⑤ Touch Screen Penal Industry Computer: this computer is in integrated design, computer and the screen is in one part, it's touch screen, or it can controlled by remote mouse and keyboard.

⑥ The whole machine can be equipped with air fume extractor, which can absorb and filter the dust from air, prevent the inhalation of dust air and protect the operator.

For the machine HBS-GQ-20A, when remove the cover, it will be the picture as below and the function Introduction are mentioned as following (for customer better understand the internal):

① Motorized Z axis: the marking head can moves up/down automatically with motorized motor system;

② High Speed Scanner Head: installed with high speed scanner and achieves fast marking and engraving;

③ Focus Finder System: two extra focus pointer will showing the exactly focus(when two red line cross into one point, that means the marking head is in right position), helps the operator to find the focus very easily, enhance the production efficiency.

④ Calibration Aluminum Plate: used for fixing jigs for mass production. used for positioning of the parts exactly;

⑤ Button for Motorized A axis: there are two buttons for control the marking head moves up or down;

⑥ Heavy-duty Bearing Wheels: the bearing wheels is with stop switch, which can support the weight up to 200kg;

⑦ Internal controlling systems: inside of the door, it's the controlling system for the whole machine. This controlling system is specially designed, with fine lines layout, high safety and consistency of performance;

⑧ Safety Lock: the safety lock is used for avoiding opening the door by mistakes, avoid electricity hazards happened during mal-operation, the lock is with security key, that only can be open by special keys, in this way, the safety will be highly secured.

⑨ Emergency Stop: during the operation, if any emergency incidence happen, the machine can be stopped quickly by pushing the emergency stop button;

⑩ Laser Generator Switch: the key is used for switch on/off the laser generator;

⑾ Main power switch: controls the main power, only the main power is switched on and then the laser power can be started; this design will increase the safety and protect the whole machine;

⑿ Industry Touch Screen Penal Computer: monitor and the computer is integrated, touch screen design, very compact, easy operate and with versatile function.

Advantages of HBS-GQ-20A1 seal Cabinet 1064nm laser marker:

1. Laser brand: Both Raycus and IPG can ensures stable working performance, the lifetime can reaches to 100,000 standard working hours.

2. Lens: high precision high speed lens can improve the high definition;

3. Motorized system: the marking head can moves up and down automatically by press up/down button;

4. Focusing system: marking head fixed with two extra redlight pointer to show the exact focus;

5. The whole design is very nice, stable, with reasonable layout of internal components;

6. The whole table is very strong.

7. Multi options and Multi functions:

From 20W to100W, we will provide the most suitable laser marking source based on your needs. No matter you want annealing, engraving, ablating, etc., HBS-GQ-20A1 can achieve your desired results with no problem. Focus adjustment function, pilot laser, easy to use software, motorized Z axis, all integrated features will make your marking process more efficient and productive.

Auto Focus Finder:

One-touch to automatically find and adjust the best focal length, easy to use auto focus finder system, ensures the precise laser marking process and save you more time.

Our customers gave favorable comments compared to other factories' machines,

so that's why our company has been in existence since 2001 year.

Good quality, on the other hand saves costs.
