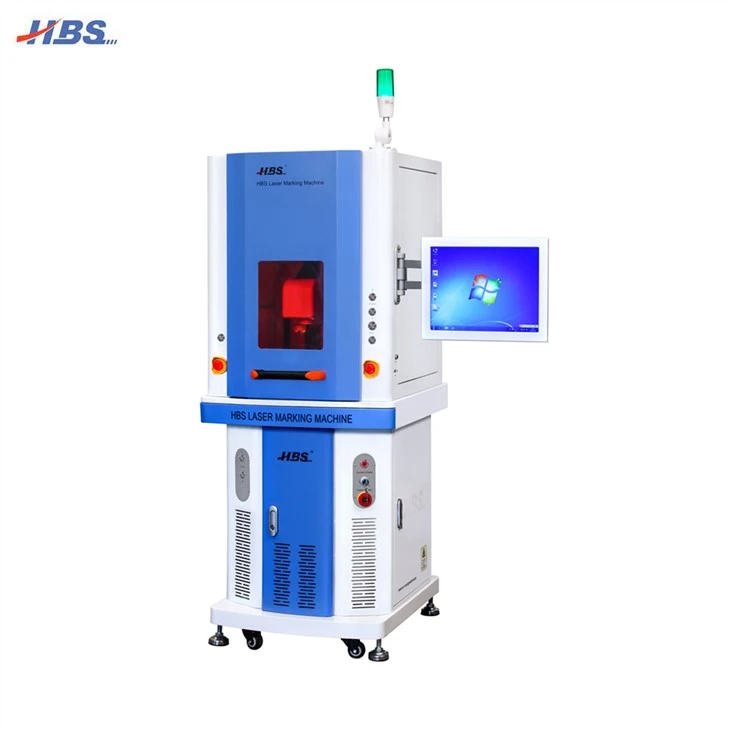

Enclosed 20W Laser Marking Engraving Machine

Enclosed 20W Laser Marking Engraving Machine




Technical Parameter:

Detailed Technical Information

 Featurers:

1. Complete Safety Cover: the machine is with complete cover design, fully comply with Germany laser safety regulations. The cover have safe system inside: when the door is not completed closed, or open when marking, the laser will shut off;
2.Warning Light: the warning light have three functions: when the machine is ready for marking or marking procedure is completed, the light will becomes green; when the machine is in operation or marking, the light will becomes orange or yellow; when the machine is not closed properly(someone open the door when the machine is working), or the machine is not safe, the light will becomes red and it will also alarm.
3.The front door is very safe which is fixed with anti-laser glasses for protecting the operator from hurting by laser emitting;
4.The cover and the machine is flexible, the cover is removable, so if the customer want to mark big parts, they can remove the cover.
5.Touch Screen Panel Industry Computer: this computer is in integrated design, computer and the screen is in one part, it's touch screen, or it can controlled by remote mouse and keyboard.
6. The whole machine can be equipped with air fume extractor, which can absorb and filter the dust from air, prevent the inhalation of dust air and protect the operator.

2.2Main Technical Specifications for HBS-GQ-20E

Model: HBS-GQ-20E

Laser Power: 20W(Actually laser power can reaches to 23watts)

Laser Power Brand: Original Raycus Laser Power. (Raycus is the best brand of laser power. HBS ensures our laser source can use 100,000hours if proper operation.)

Lens Brand: Original Singapore Ronar Smith, with extremely high speed high precision

Controlling Card: SCANLAB AG

Automatically Moving System: The marking head can be move up and down automatically by press Up or Down buttons. Without hand wheel and No need move it up/down by manually

Focus finding System: This machine have red light pointer to indicate the focus during the operation, it's quite easy to find the focus and the operator will works very easy;

Warming light system: the detailed function is mentioned above;

Self-shut off system: the detailed function is mentioned above;

Industry Touch Screen Panel Computer.
