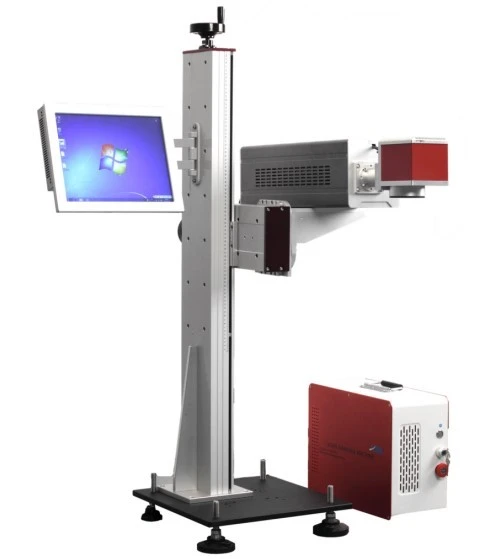

UV Laser Marking And Engraving Machine For Glass

Products illustration and Parts introduction for HBS-UV-3A

① Manual Z axis: the marking head can moves up/down with the handle;

② High Speed Scanner Head: installed with high speed scanner and achieves fast marking and engraving;

③ Laser Marking Hand Position Adjusting Handle: Adjusting handle can make the laser marking head move forward or backward horizontally; in the mean time, it can also tilting the laser marking head vertically.

④ Heavy-duty Bearing Wheels: the bearing wheels is with stop switch, which can support the weight up to 200kg;

⑤ Internal controlling systems: inside of the door, it's the controlling system for the whole machine. This controlling system is specially designed, with fine lines layout, high safety and consistency of performance;

⑥ Emergency Stop: during the operation, if any emergency incidence happen, the machine can be stopped quickly by pushing the emergency stop button;

⑦Main power switch: controls the main power, only the main power is switched on and then theG laser power can be started; this design will increase the safety and protect the whole machine;

⑧ Laser Generator Switch: the key is used for switch on/off the laser generator;

⑨ Industry Touch Screen Penal Computer: monitor and the computer is integrated, touch screen design, very compact, easy operate and with versatile function.

2.2 Main Technical Specifications for HBS-UV-3A

✓ Model: HBS-UV-3A

✓ Laser Power: 3W

✓ Laser Power Brand: Inno Laser. (Inno is one of the best brand of UV laser power, . HBS ensures our laser source can use 15,000 hours if proper operation.)

✓ Lens Brand: Original Singapore Ronar Smith, with extremely high speed high precision

✓ Controlling Card: SCANLAB AG

✓ Industry Touch Screen Penal Computer.

2.3 Detailed Technical Specifications for HBS-UV-3A

2.3.1 Detailed Technical Information
