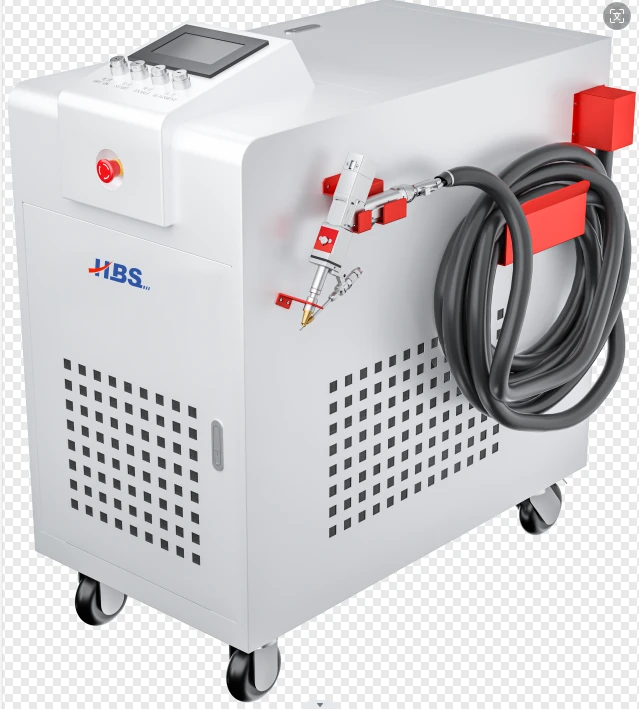

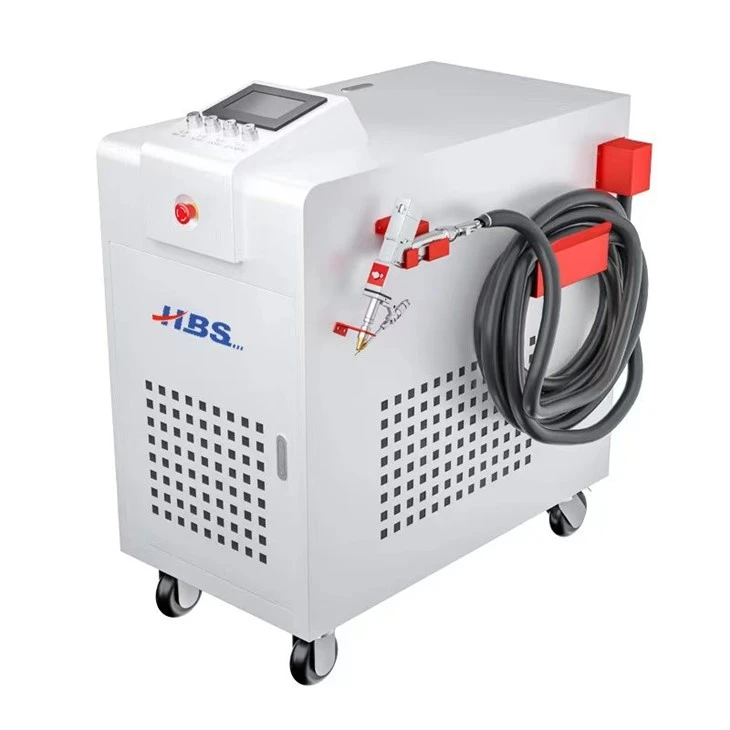

Mini Laser Welding Machine :

Laser Power: 1000W/1500W

Laser Wavelength: 1070nm

Fiber Optic Cable Length: Standard:10m Maximum:15m

Technical Parameter: Continuous/Modulation Wave

Welding Speed: 0-120mm/s

Cooling Water Tank: Industrial thermostatic water tank

Operating Temperature range: 15-35℃

Operating Humidity: <70%RH

Welding Thickness: 0.5~3mm

Welded seam: ≤0.3mm

Working voltage: AV220V

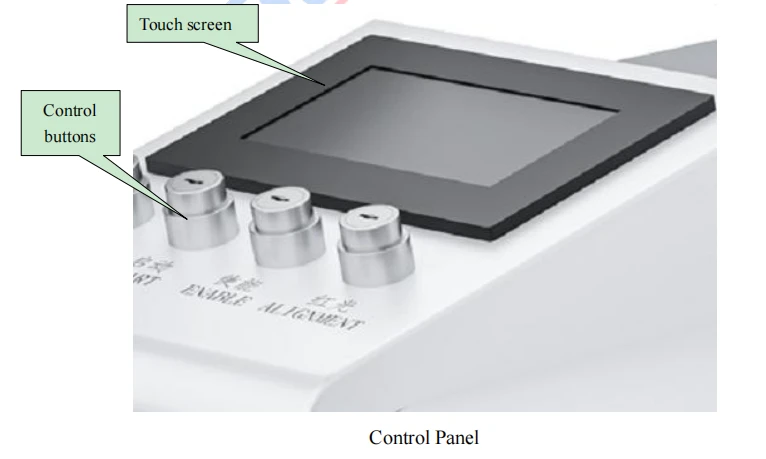

The control panel consists of a touch screen and control buttons, and its main function is to control turn-on and turn-off of the machine.

Before supplying power, ensure that the shell of the whole machine is reliably grounded.

(2) The laser output head is connected with the welding head. Please check the laser output head carefully when using it to prevent dust or other pollution. When cleaning the laser output head, please use special lens paper.

(3) If the equipment is not used in accordance with the methods specified in this manual, it may be in an abnormal working state and cause damage.

(4) When replacing the protective lens and focusing lens, please make sure to protect it.

(5) Please note: When using for the first time, when the red light cannot come out of the copper nozzle, be sure not to press the trigger to emit light.

Wire Feeder main functions

① This wire feeder is an automatic drive mechanized wire feeding device.

② The model is light in weight and easy to operate.

③ It is mainly used for automatic wire feeding in laser hand welding.

④The control system adopts microcomputer control, high precision fully enclosed low speed motor, double drive wire feeding structure makes wire feeding more powerful and not stuck, wire feeding precision is high, repeatability is good.

⑤can feed 0.8mm,1.0mm,1.2mm,1.6mm wire.

⑥ technical date：

Motor type：Fully enclosed low speed motor

Feeding speed：0-60mm/min

Wire feeder pipe：5 meters

Wire diameter：0.8mm,1.0mm,1.2mm,1.6mm
