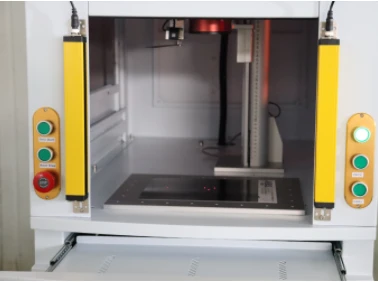

The application of optical grating safety gates in laser marking machines is primarily seen in industrial and research fields where absolute operator safety is crucial while maintaining production efficiency. It is a non-contact safety protection device that monitors hazardous areas by forming an invisible infrared light curtain.
### I. Main Application Areas and Scenarios
1. **Open Laser Marking/Engraving Workstations**
* **Scenario**: Used for marking large, irregular, or frequently loaded/unloaded workpieces, such as large metal sheets, automotive parts, and handicrafts. The equipment is typically not completely enclosed.
* **Function**: Forms a vertical or horizontal protective light curtain around the marking area. If any part of the operator's hand or body enters the light curtain area, the laser output will immediately stop or the system will enter an emergency stop state to prevent radiation damage.
2. **Integrated Automated Production Lines**
* **Scenario**: Laser marking machines are integrated into automated production lines, such as for marking serial numbers on electronic products, date coding on food packaging, and laser engraving on bottle caps.
* **Function:** Installed at the inlet and outlet of the production line as a safety passage. Ensures the laser can only operate when the workpiece has completely passed through and the safety area is unobstructed. Prevents operators from entering the robotic arm or laser processing area to interfere while the equipment is running, achieving "human-machine isolation."
3. **Teaching and Research Laboratories**
* **Scenario:** Laser processing laboratories in universities and research institutes, where users may be students or researchers with varying levels of safety awareness and proficiency.
* **Function:** Provides a reliable automated safety barrier, mitigating risks caused by operator inexperience or negligence, and is a crucial piece of equipment for laboratory safety management.
4. **Flexible Production Units Requiring Frequent Interaction**
* **Scenario:** Flexible manufacturing units with small batches and diverse product types, where operators frequently need to adjust workpieces and change fixtures.
* **Function:** Optical curtain safety doors allow for rapid entry and exit, offering greater convenience than traditional sliding or hinged doors. After personnel leave and the light curtain is interrupted, manual reset is usually required to restart the equipment, ensuring the intentionality of restarting.
### II. Core Advantages
Compared to traditional physical protective shields and safety doors, optical grating safety doors offer significant advantages:
1. **Highest Level of Safety**
* **Compliant with Safety Standards**: Typically meets international safety standards such as IEC 61496, offering high safety levels (e.g., Type 4, PLE).
* **Extremely Fast Response**: The response time from beam interruption to safety signal output is typically in the millisecond range, instantly stopping dangerous actions.
* **High Reliability**: Employs redundant design (e.g., dual-loop), ensuring safe system shutdown even if a single component fails.
2. **Improved Production Efficiency and Convenience**
* **Unobstructed Access**: Eliminates the need to open/close physical doors, facilitating material handling, tool use, and personnel passage, particularly suitable for scenarios with frequent loading and unloading.
* **Seamless Automation Integration**: Easily integrates with PLCs and robot control systems, enabling safety interlocks and automated process control.
* **Reduced Operator Fatigue**: Simplifies operation steps and improves workflow smoothness.
3. **Flexible Installation and Adaptability**
* **Customizable Light Curtain Size**: The height and width of the light curtain can be customized according to the dimensions of the laser marking machine's worktable.
* **Multiple Installation Methods**: Vertical, suspended, and side-mounted options are available to adapt to different equipment layouts and space constraints.
* **Minimal Impact on the Working Environment**: It does not occupy physical space and does not interfere with observation of the processing.
4. **Durable and Low-Maintenance**
* No physical contact, avoiding common problems such as wear and jamming found in mechanical doors.
* Modern industrial light gratings have excellent anti-interference capabilities (e.g., resistance to ambient light and electromagnetic interference) and can perform self-checks and fault reporting (e.g., lens contamination alarms), making maintenance simple.
### Summary
Light grating safety doors are a key component for achieving **high efficiency and safety in parallel** in laser marking machines. They are mainly used in **open workstations, automated production lines, laboratories, and flexible manufacturing units**. Their core value lies in: **providing the highest level of personal safety protection while minimizing interference with the operational process, thereby improving overall production efficiency**, making them a standard safety solution for modern laser intelligent manufacturing. When making a selection, it is necessary to match the appropriate safety level of the grating product according to the type of laser (such as fiber, CO2), power level and specific application scenario.
