Open-type Laser Marking Machine

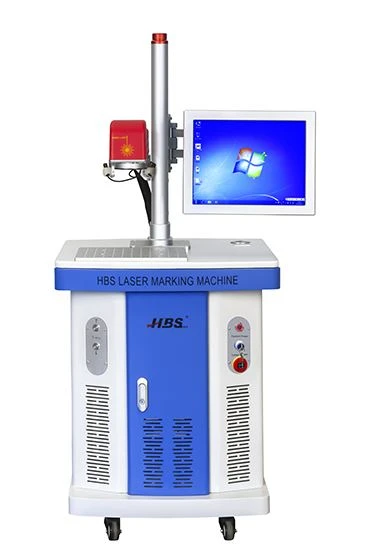

Vertical Cabinet Laser Engraving Machine



Machine Model	HBS-GQ-20A1
Laser Source	Raycus Advanced+, IPG, or customized
Average power	20watts (30/50/100W optional)
Laser Power Lifetime	100,000 hours (Theoretical data)
Fiber cable length	2.5m
Cooling	Air cooling
Marking Wavelength	1064nm
Beam Quality	﹤1.5
Laser Repetition Frequency	≤100kHz
Marking Depth	0-1.5mm (adjustable with power setting, speed, materials)
Marking Speed	≤12000mm/s
Minimum Line Width	0.01mm
Minimum Character Size	0.05mm
Repetition Precision	±0.001mm
Standard Marking Area(mm)	110*110
Optional Marking Area(mm)	65*65,75*75, 110*110,150*150, 160*160, 175*175, 200*200, 300*300 or customized   Usually 160-300mm marking area matches 50w,110mm matches 20/30w
Focal Length	Depends on marking area requirements
Power Consumption	≤500W
Machine Requirements	AC220V(±10%), 50Hz(±10%), 10A
Operation Temperature	-10℃-60℃
Humidity	5-95%
Control System	Win7, Win8, Win10, Win XP,
RAM	2GB-16GB
HDD	500G
Marking Formats	AI., PLT., DXF., TIFF., PNG., BMP., JPG. etc.
Computer Connection	2.0USB
Software	Ezcad 2.9.0



Optional Lens:

Lens Type	HBS-65	HBS-110 (Standard)	HBS-175	HBS-220	HBS-300
Focal Length	100mm	170mm	250mm	330mm	420mm
Marking Area	65mm*65mm	110mm*110mm	175mm*175mm	220mm*220mm	300mm*300mm
Note: If no special request, HBS will provide the standard marking area: 110mm*110mm Other marking size can be customized.







1. High Performance and Precision



Fast Marking Speed: Equipped with a high-speed scanning galvanometer, the speed can reach 12000mm/s, 2-3 times faster than traditional semiconductor models, suitable for mass production.

Extremely High Precision: Focused spot diameter <20μm, minimum line width of only 0.01mm, character width of 0.05mm, repeatability ±0.001mm, enabling fine marking (e.g., jewelry, electronic components).



2. Low Operating Costs



No Consumables + Long Lifespan: Laser lifespan reaches 100,000 hours (virtually no replacement required), and no cleaning/adjustment of lenses is needed, essentially "zero maintenance".

Low Energy Consumption: Power ≤500W, only 1/5 of semiconductor models; air cooling eliminates the electricity and maintenance costs of water cooling systems.



3. Flexible and Convenient Operation



Rich Functionality: Supports barcode/QR code/automatic numbering/photo printing, compatible with multiple software programs, and allows for customizable graphics/text.

Easy Positioning and Adjustment: Equipped with a red light positioning system and an electric lifting column, it can quickly align with the workpiece; it can also be expanded to include rotary/flying marking functions.



4. Strong Adaptability

Good Environmental Compatibility: Air-cooled design and temperature resistance allow it to work in harsh environments, and it even supports vehicle power supply/battery power (some models).

Wide Range of Applicable Materials: It can mark metals (steel/aluminum/gold) and some non-metals (plastic/leather, etc.), with adjustable depth (≤1.5mm).





1. Foot pedal Systems



The foot pedal can be fixed with the machine to achieve automatic marking. The marking will starts while the operator push the pedal. This system will support the clients to realize mass production.





2. Rotary Accessory



The rotary accessory will support the clients to mark round materials for rotate marking. When marking round materials, the rotary will clamp the work piece and rotate while marking. Picture as right showing:





3. Air fume extractor



Normally, for all of fiber laser marking machine, it will produce smoke and dust air during its operation. For sake of better protect the operator from

inhalation of the smoke or dust air, our company also provides the special device- air fume extractor, this device is mainly used for absorb the smoke

and dust air when the marking machine is working, and clean the dust and smoke.







Marking samples of Laser marking HBS-GQ-20A







Packing Details of Laser Marking Machine HBS-GQ-20A
