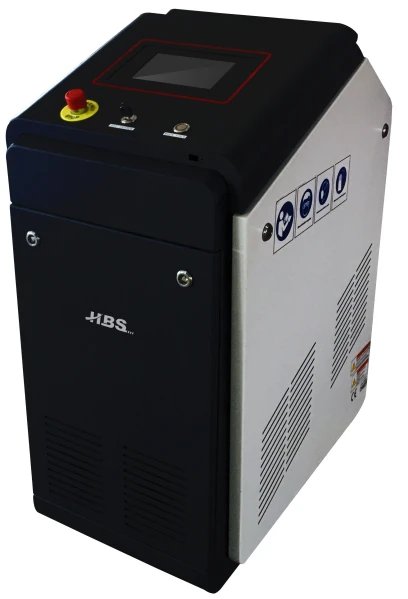

Portable Laser Cleaner For Metal Rust Removal

Hand Held Laser Cleaning Machine for Rust Removal

HBS Continuous laser rust cleaner has the ability to clean the large-scale and complex metal surface with high efficiency. Equipped with high quality brand optical laser source, easily and strongly to remove the stubborn oil,rust spot and residuary paint on the metal surface. It can protect the substrate through non-contact cleaning, and it's environmental friendly without any chemical solvent and there's no need to cope with any waste

Parameters:

Laser power(W): 500/1000/1500/2000

Laser type/Wavelength(nm): Fiber laser/1064

Laser frequency range(KHz): 10000-50000

Duty cycle(%): 1-100

Scan speed(mm/s): 10000-20000

Cooling mode: water cooling(19--25℃)

Type of cooling water: Deionized/distilled/purified water

Water temperature(℃): 18-23

Cabinet dimension(mm): 1100x743x1238

Machine weight(kg): 220/235/260

Machie power(W): 4300/5800/7300/8800

Focal depth(mm): 5/10

Fiber length(m): 10/15(customizable)

Scan width(mm): 0-150

Auxiliary gas: compressed air/nitrogen(oil and water filtration is required)

Air pressure(MPa): 0.5-0.8

Working temperature(℃): 5-40

Head weight(kg): 0.76(excluding fiber output connector)

Laser cleaning not only clean the organic contamination but also clean the inorganic contamination such as the corrosion of metal, metal particle and dust etc. laser cleaning plays an important role in many fields, such as automotive manufacturing, semiconductor wafer cleaning,precision parts processing and manufacturing,military equipment cleaning,building exterior wall cleaning,cultural relic reservation,circuit board cleaning, precision parts processing and manufacturing,liquid crystal display cleaning,gum residue removal,etc
