UV Laser Marking Machine For Wood Glass Plastic Marking





High Quality UV Laser Marking Machine



1. Product Introduction and Products Advantages:



The core advantages of this enclosed ultraviolet laser marking machine can be summarized from the following dimensions: **processing performance, safety protection, efficiency and cost, and applicable scenarios**:



1. Processing Performance: Ultra-fine + Low Damage

- **High Precision**: The short wavelength of the ultraviolet laser (typically 355nm) and the extremely small focused spot (down to the micrometer level) enable ultra-fine marking at the 0.01mm level, suitable for marking tiny patterns/text on precision products such as chips and electronic components.

- **Cold Processing with No Damage**: Processing by "breaking molecular chains" rather than high-temperature burning, the heat-affected zone is almost negligible, preventing material deformation and scorching (e.g., stable processing of fragile materials such as glass, plastic, and thin metals).



2. Safety Protection: Fully Enclosed Design for Greater Reliability

- **Isolation from Ultraviolet Radiation**: The enclosed structure completely blocks ultraviolet light leakage, preventing laser damage to the operator's skin/eyes, meeting industrial safety standards.

- **Dust and Pollution Prevention:** The enclosed space reduces dust and impurities entering the processing area, protecting core components (extending lifespan) and preventing contamination of food, pharmaceutical packaging, and other products requiring high cleanliness.



3. Efficiency and Cost: High Efficiency + Low Maintenance

- **High Speed:** Marking efficiency is approximately three times that of traditional equipment. When paired with automatic vision positioning (CCD camera), it automatically calibrates workpiece position, eliminating the need for repeated adjustments during mass production.

- **Consumable-Free + Low Maintenance:** No consumables such as ink or nozzles are required. Core components (such as imported lasers) have a long lifespan, resulting in significantly lower long-term operating costs compared to traditional equipment like inkjet printers.



4. Applicable Scenarios: Strong Material Compatibility
In addition to common plastics and metals, it can also cover **special/sensitive materials**:

- Food/pharmaceutical packaging (such as polymer bottle bodies), flexible PCB boards, silicon wafers, glassware, etc.;

- It can even achieve clear marking on highly reflective metal surfaces (aluminum, copper), avoiding the problems of blurry or flaking marks associated with traditional marking methods.



2. Products illustration for HBS-UV-30B







The below picture is showing the exterior of the machine, this design is specially exporting for European market that fully comply with EU laser safety regulations.



① Complete Safety Cover: the machine is with complete cover design, fully comply with Germany laser safety regulations. The cover have safe system inside: when the door is not completed closed, or open when marking, the laser will shut off;

② Warning Light: the warning light have three functions: when the machine is ready for marking or marking procedure is completed, the light will becomes green; when the machine is in operation or marking, the light will becomes orange or yellow; when the machine is not closed properly(someone open the door when the machine is working), or the machine is not safe, the light will becomes red and it will also alarm.

③ The front door is very safe which is fixed with anti-laser glasses for protecting the operator from hurting by laser emitting;

④ Touch Screen Panel Industry Computer: this computer is in integrated design, computer and the screen is in one part, it's touch screen, or it can controlled by remote mouse and keyboard.

⑤The whole machine can be equipped with air fume extractor, which can absorb and filter the dust from air, prevent the inhalation of dust air and protect the operator.



3. Main Technical Specifications for HBS-UV-30B



Model: HBS-UV-30B

Laser Power: 30W

Lens Brand: Original Singapore Ronar Smith, with extremely high speed high precision

Controlling Card: SCANLAB AG

Industry Touch Screen Penal Computer.



Detailed Technical Specifications for HBS-UV-30B



Detailed Technical Information



Machine Model	HBS-UV-30B
Laser Source	American coherent Advanced+
Average power	30 watts
Laser Power Lifetime	100,000 hours (Theoretical data)
Cooling	Air cooling
Marking Wavelength	10640nm
Beam Quality	﹤1.5
Laser Repetition Frequency	≤70kHz
Marking Depth	0-2mm (adjustable with power setting, speed, materials)
Marking Speed	≤7000mm/s
Minimum Line Width	0.03mm
Minimum Character Size	0.3mm
Repetition Precision	±0.001mm
Standard Marking Area(mm)	110*110
Optional Marking Area(mm)	75*75, 150*150, 160*160, 175*175, 200*200, 300*300
Focal Length	Depends on marking area requirements
Power Consumption	≤500W
Machine Requirements	AC220V(±10%), 50Hz(±10%), 10A
Operation Temperature	-10℃-60℃
Humidity	5-95%
Control System	Win7, Win8, Win10, Win XP,
Marking Formats	AI., PLT., DXF., TIFF., PNG., BMP., JPG. etc.
Computer Connection	2.0USB
Software	Ezcad 2.14.0

Optional Lens

Lens Type	HBS-65	HBS-110(Standard)	HBS-175
Focal Length	100mm	170mm	250mm
Marking Area	65mm*65mm	110mm*110mm	175mm*175mm
Note: HBS will provide lens with model HBS-110 for your company, marking area: 110mm*110mm



Foot pedal Systems





The foot pedal can be fixed with the machine to achieve automatic marking. The marking will starts while the operator push the pedal. This system will support the clients to realize mass production.



Air fume extractor





Normally, for all of fiber laser marking machine, it will produce smoke and dust air during its operation. For sake of better protect the operator from inhalation of the smoke or dust air, our company also provides the special device- air fume extractor, this device is mainly used for absorb the smoke and dust air when the marking machine is working, and clean the dust and

smoke.



4. Technical Specification for Industry Panel Touch-screen Computer



products specifications		RPT-15E-C37
System parameters	processor	Intel Celeron 1037u 1.8GHZ low consumption processor
	chipset	lntel NM70
	memory	2GB/DDR3
	disk	64Gsolid-state
	display	24-bit dual chanellvds,, support dual display
I/O	LAN port	1*Realtek 100/1000Mbps Rj45 ports
	audio	onboard HDA ALC662,LINE-out and MIC-in ports
	Serial ports	2*RS232
	USB	4* USB 2.0 ports
	VGA	1
	HDMI	1
	DC-IN	DC 9V~36V
	watchdog	0~255s programmable setting
LED	type	15＂ XGA TFT LCD
	Max resolution	1024*768
	Maximum color	16M
	Display Area	368x 281mm
	reaction time	16ms
	backlight	LED
	backlight MTBF	50,000 hours
	contrast	500:1
	Maximum view	(H)130/(V)120
Touch screen	type	4- wire resistive touch screen
	resolution	4096 x 4096
	Response time	<5ms< td="">
	Surface hardness	3H
	touch pen life	intensty 250g,5million times
	Constant temperature and humidity test	85°C / 90%RH / 1000 hrs
	High temperature test	85°C /1000 hrs
	installation	Panel and VESA mount Compatible
	color	silver gray
Enviromental parameter	Work temperature	-20~60ºC
	Storage temperature	-40~80ºC
	relative humidity	10~95%@40ºC(No condensation)
	vibration	50~500Hz,1.5G,0.15mm peak value
	shock	10G(11ms)
operating system	full support for Windows XP/Windows 7 /Linux system

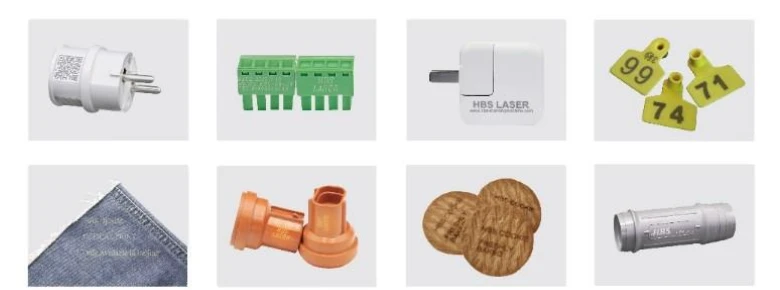

5. Marking Samples illustration (Marked by HBS-UV-30B)
