Your Professional Ultraviolet Laser Marking Machine Supplier
HBS Tech Co., Ltd. (HBS), which was founded in 2001, is specialized in developing and manufacturing laser marking machine with excellent quality and perfect after-sales services. After years of continuous efforts, HBS has become one of the largest and leading laser-marking equipment suppliers in China. HBS has provided numerous well-known companies with wide-ranging solutions and reliable marking equipment, with a strong and sustainable traceability to the industry.
-
![UV Laser Marking Machine For Wood Glass Plastic Marking]()
UV Laser Marking Machine For Wood Glass Plastic MarkingBig Machine Shell,Safe Marking,Euro standardview more -
![Ultraviolet Laser Marking Machine For Glasses, TFT, LCD Screen, Textile Products]()
Ultraviolet Laser Marking Machine For Glasses, TFT, LCD S...Ultraviole t Laser Marking Machine: It has following features: high electrooptical conversion rate, long working time of nonlinear crystal, high stability, high positioning accuracy,...view more -
![Ultraviolet Laser Marking Machine In Precision Machine]()
Ultraviolet Laser Marking Machine In Precision MachineUltraviolet Laser Marking Machine in precision machine Technical Parameter Model HBS-ZG-3 HBS-ZG-5 Laser Wavelength 355nm 266nm Laser Power 3w /5w Marking Area 50×50mm/100×100mm Marking Speed...view more -
![3W Non-metal laser printing machine]()
3W Non-metal laser printing machineHBS 3W UV laser non-metal printing machine take advantage of high speed scanning vibrating lens and extending focusing system, high stability to solve varieties of marking application. Can mark...view more -

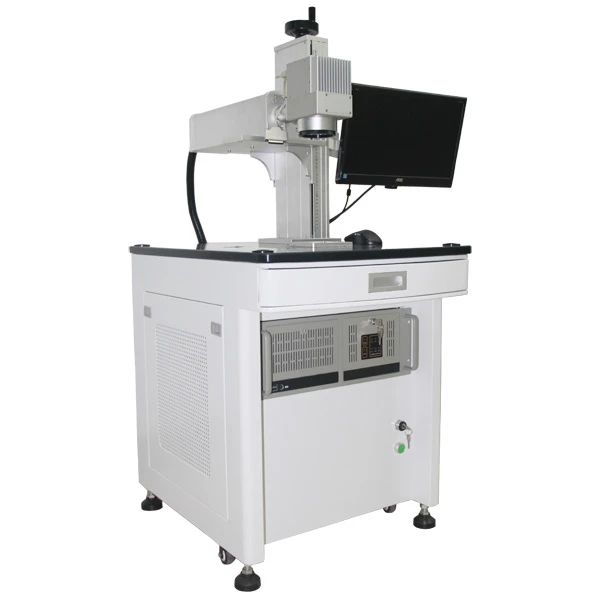

![UV Laser Marking Machine In Good Quality]()
UV Laser Marking Machine In Good QualityUltraviolet Laser Marking Machine Technical Parameter Type: laser marking machine Laser Wavelength 355nm UV laser Laser Power 3w /5w Marking Area 50×50mm/100×100mm Marking Speed 7000mm/s Beam...view more -
![Ultraviolet Laser Marking Machine From Manufacture Factory]()
Ultraviolet Laser Marking Machine From Manufacture FactoryUltraviole t Laser Marking Machine Features: It has following features: high electrooptical conversion rate, long working time of nonlinear crystal, high stability, high positioning accuracy,...view more
Why choose us
Quality Aspects
We strictly adhere to the ISO9001 quality control system. From design to finished product, and from raw material procurement and production to packaging and delivery, all processes are subject to rigorous inspection and supervision to ensure that our products have perfect quality and excellent performance during use.
Service Aspects
HBS is headquartered in Beijing and has branches in domestic cities such as Shanghai, Dongguan, Shenyang, and Ningbo, responsible for sales, after-sales service, technical support, and product delivery. We firmly believe that perfect and reliable products, combined with excellent after-sales service, will bring our customers unprecedented satisfaction and trust.
Sales Market
HBS's marking machine widely used and accepted all over the world that covering European countries, South American countries, South Korea, India, Thailand, Vietnam, Malaysia, Singapore, and Indonesia etc.
Technical Specifications
|
Machine Model |
HBS-UV-5A |
|
Laser Source |
Inno Laser |
|
Average power |
5 watts |
|
Laser Power Lifetime |
15,000 hours (Theoretical data) |
|
Fiber cable length |
2.5m |
|
Cooling |
Water Cooling(very stable and reliable) |
|
Marking Wavelength |
355nm |
|
Beam Quality |
﹤1.2 |
|
Laser Repetition Frequency |
30 - 150 kHz |
|
Pulse Energy |
70 µJ |
|
Pulse Width |
1-15 ns |
|
Marking Speed |
≤15000mm/s |
|
Minimum Line Width |
0.01mm |
|
Minimum Character Size |
0.5mm |
|
Repetition Precision |
±0.001mm |
|
Standard Marking Area(mm) |
110*110 |
|
Optional Marking Area(mm) |
75*75, 150*150, 160*160, 175*175, 200*200, 300*300 |
|
Focal Length |
Depends on marking area requirements |
|
Power Consumption |
≤500W |
|
Machine Requirements |
AC220V(±10%), 50Hz(±10%), 10A |
|
Operation Temperature |
15ºC - 40ºC |
|
Humidity |
20-80% |
|
Control System |
Win7, Win8, Win10, Win XP, |
|
RAM |
2GB-16GB |
Optional Lens
|
Lens Type |
HBS-65 |
HBS-110(Standard) |
HBS-175 |
|
Focal Length |
100mm |
170mm |
250mm |
|
Marking Area |
65mm*65mm |
110mm*110mm |
175mm*175mm |
|
Note: HBS will provide lens with model HBS-110 for your company, marking area: 110mm*110mm |
|||
Key Features
High Precision
Delivers ultra-fine marking, ideal for micro-marking applications.
Low Heat Impact
Prevents damage to sensitive materials, maintaining the integrity of the marked surface.
Versatile Materials
Suitable for marking plastics, glass, ceramics, metals, and more.
Wide Applications
Widely used in industries such as electronics, medical devices, cosmetics, and packaging.
Advantages of UV Laser Marking Machines for Glass, Plastic, Ceramic, and Metal
1. Utilizes a 355nm UV laser generator with an extremely small focused spot, enabling precision marking effects up to 0.01mm, while also offering high marking speeds to enhance production efficiency.
2. UV laser marking employs cold light technology, with almost no heat-affected zone, preventing material deformation, charring, or yellowing, making it more suitable for processing heat-sensitive materials.
3. The lines produced by UV laser marking are fine and clear, resistant to wear and fading, ensuring more distinct and durable marks with superior quality.
4. The control software features a user-friendly interface, supporting various image formats (e.g., jpg, png, dxf), allowing users to easily set parameters on a computer, making operation straightforward and quick to learn within 5-10 minutes.
5. Equipped with a professional water-cooling system to lower the laser's operating temperature, enhancing the device's stability and lifespan, making it more suitable for prolonged processing.
6. The laser adopts an integrated structural design, combining the optical path and external drive circuits into one, offering strong anti-interference capabilities. The entire machine is upgraded to a fully sealed structure, effectively preventing external dust ingress, ensuring efficient operation even in harsh production environments.
7. Employs advanced high-speed galvanometer, field lens, and laser technology, ensuring fast and efficient marking without the need for consumables, resulting in almost zero usage and maintenance costs.
8. The UV marking machine is compact in size, low in power consumption, and produces no smoke or pollution during processing, avoiding secondary environmental pollution, thus better meeting environmental protection requirements.
Industries
UV laser marking machines are widely used across industries such as:
Electronics
Marking electronic components, circuit boards, and microchips.
Medical Devices
Engraving medical tools, instruments, and devices with precision.
Cosmetics and Personal Care
Marking product packaging, such as bottles and tubes.
Automotive
Engraving interior parts, switches, and labels.
Packaging
Creating barcodes, QR codes, and expiration dates on various packaging materials.
Jewelry and Luxury Goods
Marking intricate designs and text on delicate surfaces.
Spectrum of materials
All plastics: ABS, PVC, PLA, polycarbonate, polypropylene and especially silicone.
Glass and crystal: Marking without risk of micro-cracks.
Ceramics: Precision engraving on various types of ceramics.
Electronic components: Microchip housings, printed circuit boards (PCBs), silicon wafers.
Medicine: Marking of plastic parts of surgical instruments, implants and medical equipment.
Solar energy: Labelling of solar cell wafers.
It can also mark wood, paper, leather and even metals, giving a different contrast to Fibre Laser.
How to Use a UV Laser Marking Machine?
Preparation Work
Check the Equipment: Ensure the device is properly connected to the power supply and the cooling system is running stably.
Connect to the Computer: Open the computer control software and ensure the machine is properly connected to the computer.
Parameter Settings
Laser Power Adjustment: Adjust the laser power according to the material type and thickness to avoid material damage caused by excessive power.
Focus Height Adjustment: Adjust the focus height based on the distance between the material and the laser, as well as the material thickness, to prevent processing issues due to improper focus height.
Marking Operation
Positioning: Use the red light positioning system to align the laser marking area with the processing area.
Start the Marking Program: Input the content to be marked and click the start button to begin the marking process.
Complete Marking: After marking is completed, turn off the device and check if the marking effect meets the requirements.
Certificates
FAQ
