China 3D Laser Marking Machine Manufacturers, Suppliers, Company

Your Professional 3D Laser Marking Machine Supplier

HBS Tech Co., Ltd. (HBS), which was founded in 2001, is specialized in developing and manufacturing laser marking machine with excellent quality and perfect after-sales services. After years of continuous efforts, HBS has become one of the largest and leading laser-marking equipment suppliers in China. HBS has provided numerous well-known companies with wide-ranging solutions and reliable marking equipment, with a strong and sustainable traceability to the industry.

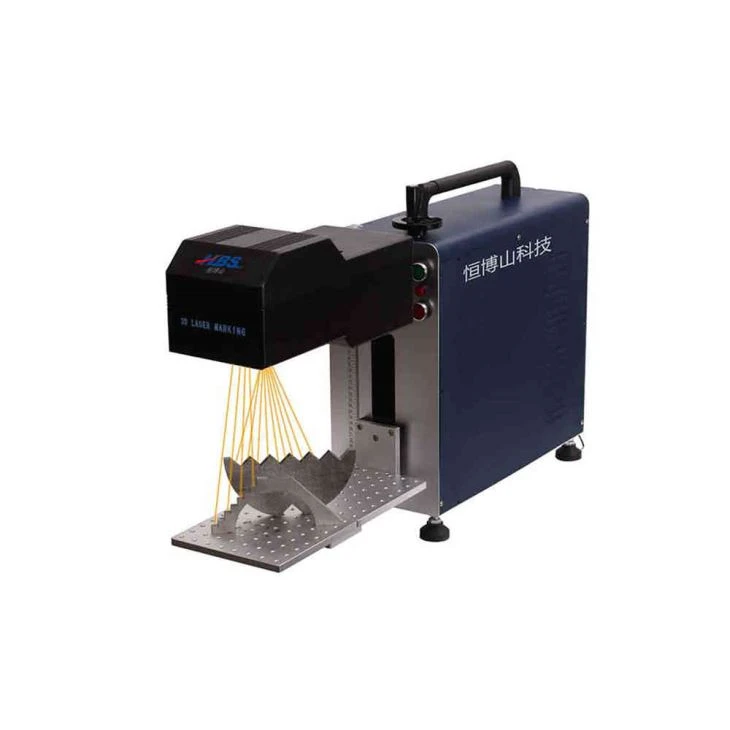

3D Fiber Laser Marking Machine In High Precision
3D Fiber Laser Marking Machine in High Precision 3D FIBER LASER MARKING MACHINE Features： ● The principle of laser marking is to use the focused tiny laser beam to generate high energy and...
view more
3D laser marking machine in good quality and good price f...
introduction of 3D laser marking machine in good quality and good price for non-metal materials, features of the 3D laser marking machine.
view more
China Supply 3D Fiber Laser Marking Machine For Non-Metal...
3D Fiber Laser Marking Machine for Non-Metal Materials Technical Parameter System Response Time Side slope signal: less than 1ms Position Output Impedance: 1K±1%Ω Position Signal Input Ratio:...
view more

Why choose us

Quality Aspects
We strictly adhere to the ISO9001 quality control system. From design to finished product, and from raw material procurement and production to packaging and delivery, all processes are subject to rigorous inspection and supervision to ensure that our products have perfect quality and excellent performance during use.

Service Aspects
HBS is headquartered in Beijing and has branches in domestic cities such as Shanghai, Dongguan, Shenyang, and Ningbo, responsible for sales, after-sales service, technical support, and product delivery. We firmly believe that perfect and reliable products, combined with excellent after-sales service, will bring our customers unprecedented satisfaction and trust.

Sales Market
HBS's marking machine widely used and accepted all over the world that covering European countries, South American countries, South Korea, India, Thailand, Vietnam, Malaysia, Singapore, and Indonesia etc.

Technical Parameters

Item	Parameters
Laser type	Fiber Laser	CO2 Laser (Large format)	UV Laser
Wavelength of laser	1064nm	10600nm	355nm
Laser Power	30W/50W/60w/100W	100W/200W/300W	5W/10W
Frequency regulation range	30-50KHZ	0-130KHZ	0-150KHZ
Beam quality	M2＜1.2	M2＜1.2	M2＜1.2
Plane marking range	110mmX110mm 500mmX500mm Range optional
Surface marking range	110mmX110mm 500mmX500mm Range optional
Surface marking height range	±50mm	±50mm	±50mm
Surface acceptance angle	＜100°	＜100°	＜100°
Marking Speed	≤7500mm/s	≤7500mm/s	≤7500mm/s
Minimum linewidth	0.03mm	0.03mm	0.03mm
Minimum character	0.3mm	0.3mm	0.3mm
Repeatability precision	0.01mm	0.01mm	0.01mm
Marking Depth	≤1.2mm(According to the material)	≤1.2mm(According to the material)	≤0.4mm(According to the material)
Power supply condition	220V/50Hz/10A	220V/50Hz/16A	220V/50Hz/10A
Cooling Type	Wind Cooling	Water Cooling	Water Cooling

Features of 3D Laser Marking Machine

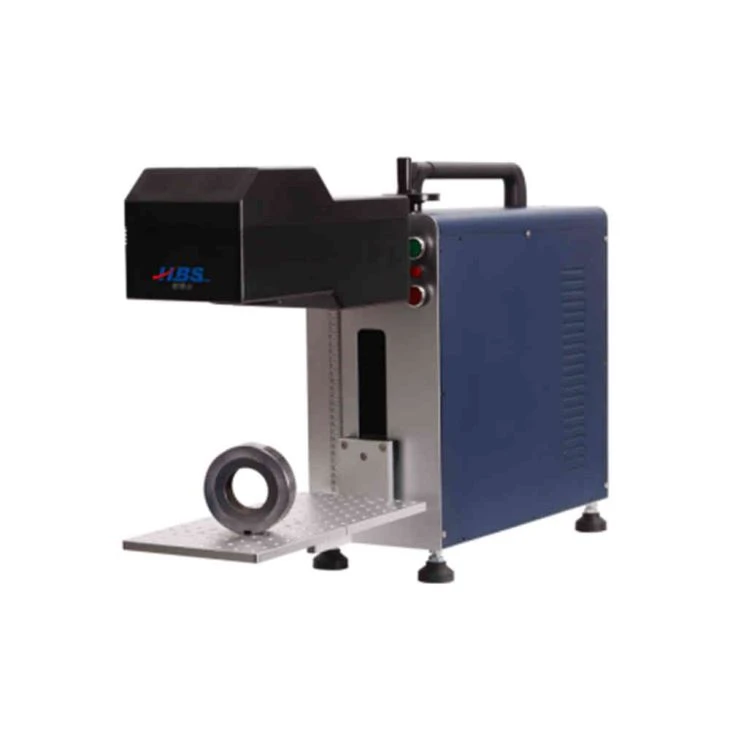

China Supply 3D Fiber Laser Marking Machine For Non-Metal Materials

1. High precision of 3D positioning technology, high-speed dynamic focusing and scanning system, short pulse, high-peak-power, and HPRF (High Pulse Repetition Frequency).

2. User-friendly operating interface is suitable for many file formats, such as dxf, plt, CNC, step, iges, and more.

3. High-strength cast machine structure makes the 3D fiber laser marking machine more stable.

4. IPG, Raycus, and JPT fiber laser generator for optional, the lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. We have 2 years of warranty for the laser source, the diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit a high-quality laser beam. This is the best choice for customers who have special requirements for the finest laser beam and features.

5. The high-tech product is a combination of laser devices, computers, auto controllers, and precision machinery.

6. Top brand scanning system makes the scanning speed up to 8000mm/s.

7. Afford the specific marking software based on Windows, which adjusts the laser power and pulse frequency. You can input and output by computer according to edit in both the specific marking software and the graphic software such as AutoCAD, CorelDRAW, or Photoshop.

8. Using laser software to control the optical expanded beam lens in the optical axis with direction high speed reciprocating motion, dynamic adjustment of the focal length of the laser beam, making focal spots in different locations to realize the 3D engraving.

3D Laser Marking Machine Solution

Cuting edge 3D Marking Technology: With dynamic focus technology, our 3D laser marking machines achieve precise results even on complex details such as slopes, cylinders, and spheres.

Superior Accuracy and Precision: For accuracy and precision, our machines have advanced optics, high-speed galvanometers, and real-time focus adjustments during controlled turning for deep engravings and intricate designs.

Advanced Dynamic Software Implementation: Models and images in 3D can be imported with ease using software created for a high degree of surface irregularity.

Smaller Build Size with Greater Usability: Powerful yet compact, our systems have a large working area to allow for a wide range of applications.

Green Technology and Economical Power Usage: Targeted for industrial use, these machines are fast while remaining eco-friendly and economical without sacrificing performance.

Application Industry

Fiber 3D Laser Marking Machine can be applied to all walks of life :

Electronic Components

Resistance, capacitance, chips, printed circuit boards, computer keyboard.

Apparatus And Meter

Panel signs, precision equipment.

Instrument

Panel signs nameplates, precision equipment.

Hardware Tools

Knives, tools, measuring tool, cutting tool.

Automobile Parts

Pistons, piston rings, gears, shafts, bearings, clutch, lights.

Mechanical Parts

Bearings, gears, standard parts, motors.

Daily Necessities

Handicrafts, zipper, key holder, sanitary ware.

Jewelry

Rings Jewelry, gold, silver.

Food and Drinking Packing

Plastic packings.

After Sales Service

1. All of our machines will be fully checked by our quality control department before the shipment. We guarantee all of our laser machines have a one-year warranty (quick-wear parts not included).

2. Training details: operation principles, system and structure, safety and maintenance, software the processing technique, and so on.

3. Numerous feedback from our clients has proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:

We guarantee that we will give you a clear reply within 24 hours.
Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
If the malfunction is caused by improper operation of software and other soft faults, we will help solve the problem online.
We will offer plenty of online support, just like detailed technical and installation instructions by email, video, and telephone. (Training by team viewer)

Certificates

productcate-1-1

FAQ

Q: What is the main product of your company?

A: Our main products include laser engraving machines, laser marking machines, laser cutting machines, laser welding machines and laser spare parts.

Q: What are the advantages of your laser equipment?

A: Small mold carving can be done on the metal, and the small carved mold is very delicate.

Q: How to control the quality when producing laser equipment?

A: We introduce international advanced production technology and strictly implement a series of quality and cost control measures to ensure the quality of laser marking machines. In addition, all raw materials are strictly inspected according to international standards before being put into production.

Q: How deep can it engrave into metal?

A: All metals can be engraved into with some depth; however, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.

Beijing HBS Science & Technology Co.,Ltd is a professional 3d laser marking machine company and one of the top level China 3d laser marking machine manufacturers and suppliers, welcome to buy cheap, low price, or discount products from us.
