Your Professional CO2 Laser Marking Machine Supplier
HBS Tech Co., Ltd. (HBS), which was founded in 2001, is specialized in developing and manufacturing laser marking machine with excellent quality and perfect after-sales services. After years of continuous efforts, HBS has become one of the largest and leading laser-marking equipment suppliers in China. HBS has provided numerous well-known companies with wide-ranging solutions and reliable marking equipment, with a strong and sustainable traceability to the industry.
-
![Hood Enclosed Euro Standard CO2 Laser Marking Machine]()
-

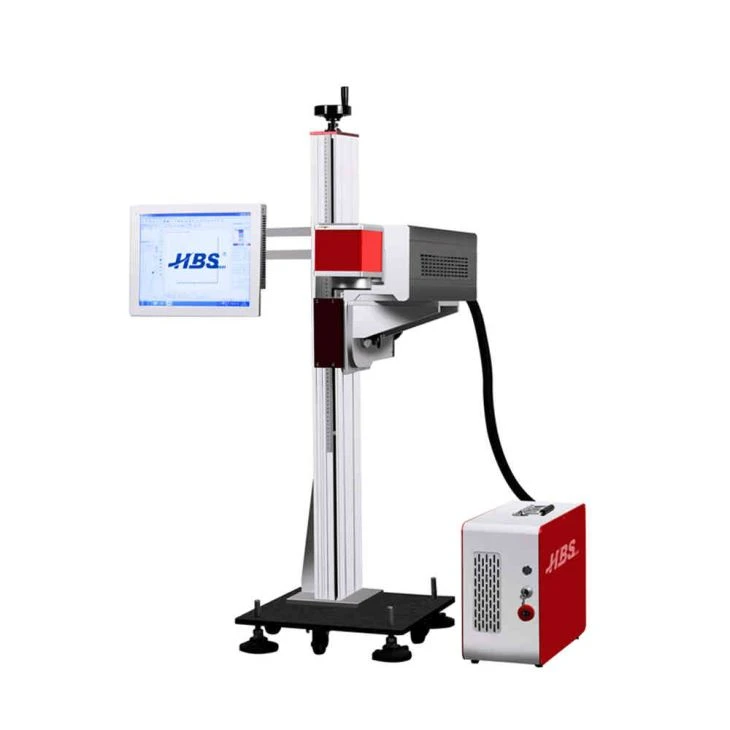

![Flexible CO2 flying online production Marking Machine]()
Flexible CO2 flying online production Marking Machine1.Basis Info. of the Flexible CO2 Marking System CO2-50A Series: CO2 Series Code : CO2-50A Flexible CO2 Marking System Prominent advantages: Stable. Powerful. Maximum Flexibility. 2....view more -
![10600nm infrared CO2 Laser non-metal Marking Machine]()
10600nm infrared CO2 Laser non-metal Marking MachineCO2 high-speed laser marking machine HBS-GQ-20 1. The features of CO2 laser marking machine CO2 laser marking machine controlled by the calculator, by the use of 10.64um laser beam expansions,...view more -
![High Quality CO2 Laser Marking Machine For Nonmetal Material Marking]()
High Quality CO2 Laser Marking Machine For Nonmetal Mater...Big Machine Shell,Safe Markingview more -
![CO2 Non-Metal Laser Marking Machine 30W]()
CO2 Non-Metal Laser Marking Machine 30WCO2 Fiber Laser Marking Machine 30w Product Introduction HBS CO2 Laser Marking Machine is specially designed for non-metallic materials marking. It is equipped with the original imported American...view more -
![CO2 Wood Laser Printing Machine From China]()
CO2 Wood Laser Printing Machine From ChinaBrief introduction HBS Science & Technology Co,.Lts make a great effert on the co2 laser marking machine. Our company's garment laser marking machine takes many factors into consideration,...view more -
![ceramic Marking Machine]()
ceramic Marking MachineCeramic marking machine: What kind of machine can mark on the ceramic? Ceramic laser marking machine uses CO2 RF laser and high-speed scanning galvanometer system. Equipped with high-quality...view more -
![1064nm infrared Flexible Laser Printing System Marking Plastic, Rubber, Woods]()
1064nm infrared Flexible Laser Printing System Marking Pl...CO2 Marking Samples CO2 Series and Specs Certifications Our Service Packing & Deliveryview more -
![Integrated into Production Line Flying Marking System (Online Laser Marking Machine)]()
Integrated into Production Line Flying Marking System (On...CO2 laser flying marking machine combines the most advanced high-speed laser galvanometer technology, with long life. High-quality CO2 laser, coupled with flying laser marking software, applies...view more -
![Open Table CO2 Marking System HBS-CO2-20]()
Open Table CO2 Marking System HBS-CO2-201. Basis Info. of the marking machine CO2-20 Series: CO2 Series Models: CO2 20 Name： Open Table CO2 Marking System Prominent advantages: Table Design. Wide application range. 2.Features of the CO2...view more -
![Enclosed Working Station （CO2 Laser Marking Machine HBS-GO2-30B）]()
Enclosed Working Station （CO2 Laser Marking Machine HBS-G...1. Basis Info. of the marking machine CO2-30B Series: CO2 Series Models: CO2 20 Name: Enclosed Working Station 2. Prominent advantages of marking machine CO2-30B: Spacious. Safe. More possibility....view more -
![CO2 Carbon Dioxide Laser Marking Machine Printer Engraver HBS-CO2-30]()
CO2 Carbon Dioxide Laser Marking Machine Printer Engraver...Product Introduction HBS CO2 Laser Marking Machine is specially designed for non-metallic materials marking. It is equipped with the original imported American CO2 laser and high-speed...view more
Why choose us
Quality Aspects
We strictly adhere to the ISO9001 quality control system. From design to finished product, and from raw material procurement and production to packaging and delivery, all processes are subject to rigorous inspection and supervision to ensure that our products have perfect quality and excellent performance during use.
Service Aspects
HBS is headquartered in Beijing and has branches in domestic cities such as Shanghai, Dongguan, Shenyang, and Ningbo, responsible for sales, after-sales service, technical support, and product delivery. We firmly believe that perfect and reliable products, combined with excellent after-sales service, will bring our customers unprecedented satisfaction and trust.
Sales Market
HBS's marking machine widely used and accepted all over the world that covering European countries, South American countries, South Korea, India, Thailand, Vietnam, Malaysia, Singapore, and Indonesia etc.
Detailed Technical Information
|
Machine Model |
HBS-CO2-30B |
|
Laser Source |
American coherent Advanced+ |
|
Average power |
30 watts |
|
Laser Power Lifetime |
100,000 hours (Theoretical data) |
|
Cooling |
Air cooling |
|
Marking Wavelength |
10640nm |
|
Beam Quality |
﹤1.5 |
|
Laser Repetition Frequency |
≤70kHz |
|
Marking Depth |
0-2mm (adjustable with power setting, speed, materials) |
|
Marking Speed |
≤7000mm/s |
|
Minimum Line Width |
0.03mm |
|
Minimum Character Size |
0.3mm |
|
Repetition Precision |
±0.001mm |
|
Standard Marking Area(mm) |
110*110 |
|
Optional Marking Area(mm) |
75*75, 150*150, 160*160, 175*175, 200*200, 300*300 |
|
Focal Length |
Depends on marking area requirements |
|
Power Consumption |
≤500W |
|
Machine Requirements |
AC220V(±10%), 50Hz(±10%), 10A |
|
Operation Temperature |
-10℃-60℃ |
|
Humidity |
5-95% |
|
Control System |
Win7, Win8, Win10, Win XP, |
|
Marking Formats |
AI., PLT., DXF., TIFF., PNG., BMP., JPG. etc. |
|
Computer Connection |
2.0USB |
|
Software |
Ezcad 2.14.0 |
Optional Lens
|
Lens Type |
HBS-65 |
HBS-110(Standard) |
HBS-175 |
|
Focal Length |
100mm |
170mm |
250mm |
|
Marking Area |
65mm*65mm |
110mm*110mm |
175mm*175mm |
|
Note: HBS will provide lens with model HBS-110 for your company, marking area: 110mm*110mm |
|||
- A CO2 laser machine uses molecular gases (CO2, N2, and helium) mixtures for fine laser marking.
- It has a higher power output of 20w and onwards, to get better efficiency.
- The machine does intricate designing and markings on non-metallic material perfectly. However, the metallic marks are not that efficient.
- It has a wavelength range of 0.6μm and 10.6μm.
- Co2 lasers have inbuilt software support for controlling all operational activities.
Advantages of CO2 Laser Marking Machine
Versatility: CO2 laser marking machines can mark on a wide range of non-metallic materials, including wood, acrylic, leather, glass, paper, and fabrics.
High Precision: CO2 lasers provide excellent precision, enabling detailed and intricate markings.
Minimal Heat Generation: The low heat input of CO2 lasers prevents melting, charring, or warping of the material, ensuring high-quality markings.
Non-Contact Process: The non-contact nature of CO2 laser marking prevents any physical damage to delicate or sensitive materials.
Fast Marking Speed: CO2 laser marking machines can achieve high-speed marking, increasing productivity in industrial applications.
Permanent Markings: CO2 laser markings are permanent and resistant to wear, ensuring the longevity of the marks.
What materials can be marked by CO2 laser marking systems?
Cardboard: CO2 lasers are adept at etching high-contrast, permanent marks on cardboard, making them ideal for creating barcodes, logos, and packaging information without the need for inks or labels.
Paperboard: CO2 lasers can precisely mark paperboard with intricate designs and text, providing a non-contact method that ensures clean, crisp results without compromising the material’s integrity.
Wood: Including hardwood, softwood, plywood, and MDF, CO2 lasers can create intricate designs and markings on wooden items.
Glass: Despite its fragility, glass can be etched with CO2 lasers for functional purposes, such as serial numbers or best before dates (BBD).
Rubber: Commonly used to create custom stamps, CO2 lasers can cleanly cut and engrave rubber.
Plastics: While many types of plastics can be inscribed using a CO2 laser, materials such as Polyethylene Terephthalate (PET) are particularly well-suited for this process. The laser marking on PET plastics can result in a distinct color change, providing excellent contrast for easy identification and a premium finish.
Ceramics: CO2 lasers can etch permanent marks onto ceramic surfaces, often used for barcoding.
The CO2 laser marking machine has a very wide range of applications, spanning from electronic products to food and beverage packaging, and further extending to medical devices, jewelry, textiles and apparel, handicrafts, hardware and building materials. It covers almost all industries and fields with marking needs. It is primarily used for various non-metallic materials, including ABS, PVC, PC, acrylic, epoxy resin, glass, ceramics, leather, fabric, rubber, plastic, wood, MDF, plywood, bamboo, stone, artificial stone, corrugated paper, cardboard, and more. Additionally, it can also be used for coating removal on certain coated metal materials.
Options
Infrared beam positioning
Infrared beam focusing
Support components
Smoke absorption purifier
